Electric Loft Ladders

JOINERY

The Electric

Loft Ladder

Company

How they work:

Slindon

(Automatic Sliding Ladder) Price from £3500.00

The Slindon is our entry-level electric loft ladder.

This is the nearest we get to an ‘off the shelf’ product, and has some limitations on floor-to-floor heights and box size.

Structural Opening: Length: 1200mm Width: 685mm

Maximum Floor Height: 2750mm

Floor to Ceiling: Max. 2500mm

Angles available: 70 degrees

Prices exclude VAT & Delivery (fitting not included)

Slindon Plus

Structural opening 1400mm

Floor to ceiling up to 2600mm

£3750 Excludes fitting, VAT & Delivery

2 of 2

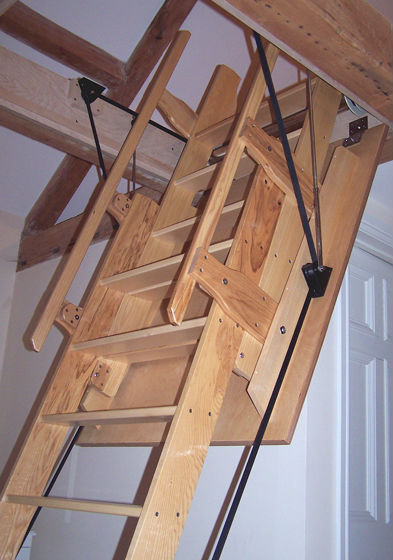

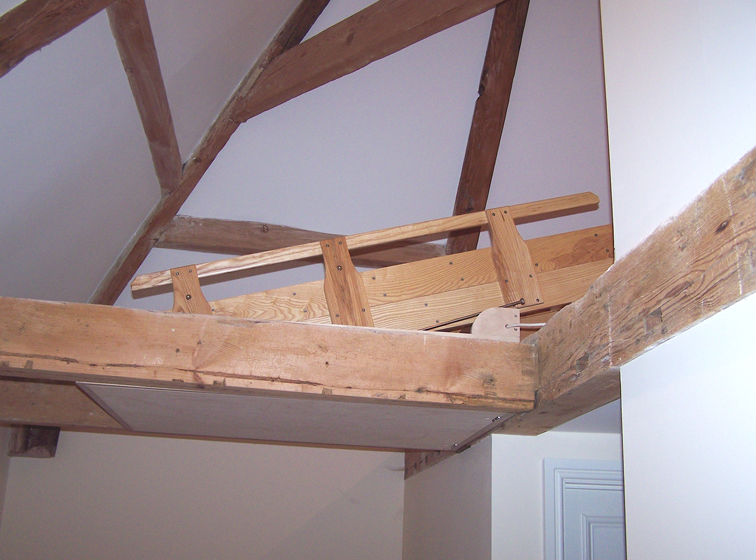

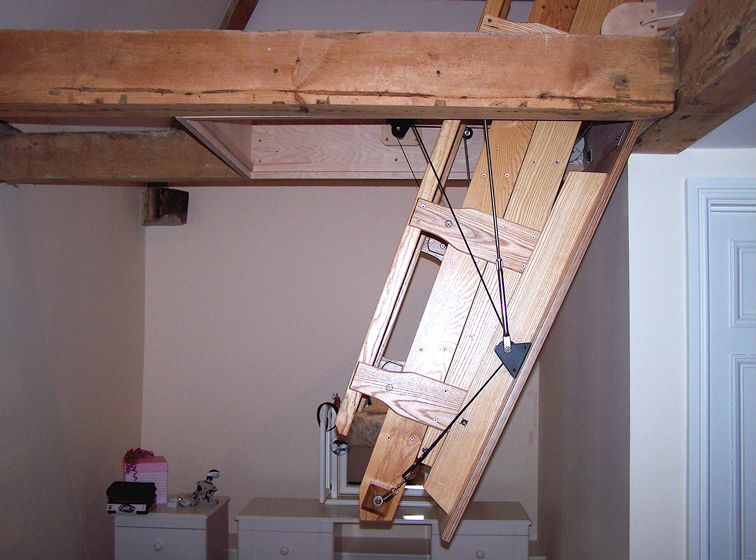

Boxgrove

(Automatic Sliding Ladder) Price from £4000.00

This was the first of our electric loft ladders to be developed, and has proven to be a very reliable product. Although a smaller size ladder section is used than for the Chilgrove, the Boxgrove is still built to the same high standards and with the same materials as our other products. The Boxgrove is a fine addition to any home.

Structural Opening: Lengths vary depending on storage heights and lengths you have available. They vary from 1200mm (min) to 1800mm(max),

Width can vary from: 770mm(max) to 650mm(min)

Maximum floor height is 3000mm depending on length of the opening.

Angles available: 65 degrees Standard, 70 & 75 degrees available

Prices exclude VAT & Delivery (fitting not included)

1 of 3

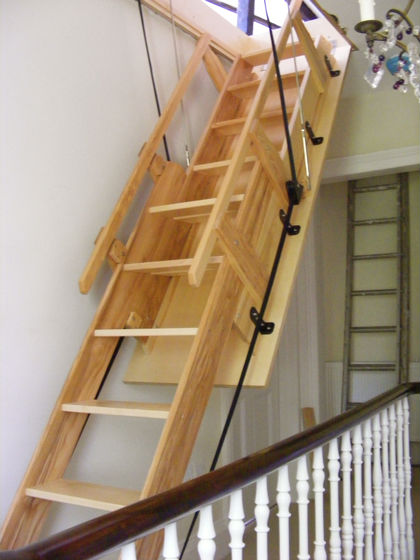

Chilgrove

(Automatic Folding Stairway) Price from £4600.00

The Chilgrove is our largest two-section sliding loft ladder, and can be built to the same dimensions as the Amberley. This ladder typically has a large opening for the door and shallower angles than standard loft access.

Structural Opening: Lengths vary depending on storage heights and lengths you have available. They vary from 1400mm (min) to 2000 (max)

Width can vary from: 820mm to 870mm as standard, available 700mm (min) to 900mm (max)

Maximum floor to floor height 4000mm depending on length of the opening.

Angles available: 70, 65, 60, 55 degrees

2 of 3

Price from £4600.00

Amberley

(Automatic Folding Stairway)Price from £4600.00

The Amberley is one of our highest spec loft stairways, with large treads, large door opening and shallower angles. This product has a stability that gives confidence and encourages use. Less storage space is required than is possible with the Midhurst, due to the stairs folding action.

The typical structural opening length is between 1500mm – 1800mm, and width 820mm – 870mm. The Amberley combines functionality and style, and is produced using sustainably sourced hard wood, typically Beech and Ash, as standard. Crafted with care and attention to detail, the Amberley is an exceptional addition to any home or business.

This is a bespoke stairway, so please contact S & T Joinery at an early stage of your project for advice on the dimensional requirements of this product.

Structural Opening: Lengths vary depending on storage heights and lengths you have available. They vary from 1400mm (min) @ 65 degrees to 2000mm (max) @ 55 degrees

Width can vary from: 820mm to 870mm as standard, available in certain circumstances 700mm (min) to 900mm (max)

Floor to floor: Up to 3500mm

Angles available: 75, 70, 65, 63, 60, 55 degrees

NEW FOR 2018!! — 50 degrees – please call for details.

4 of 4

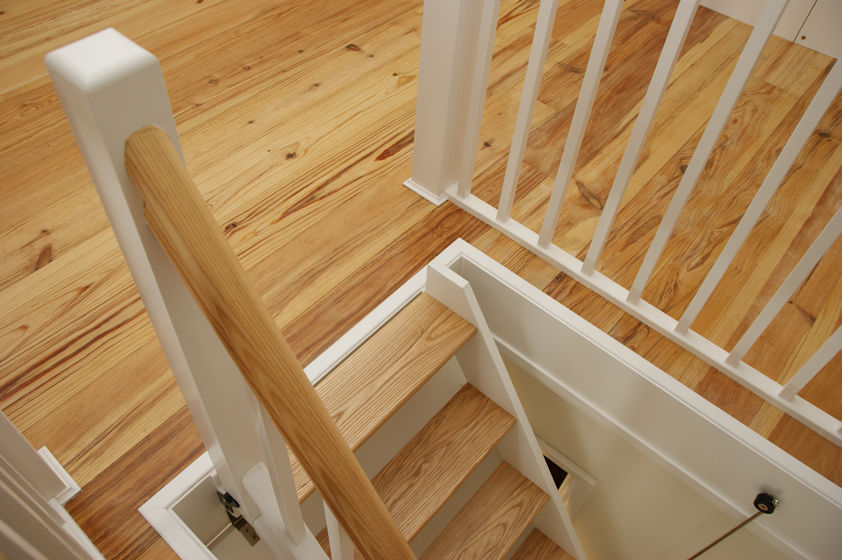

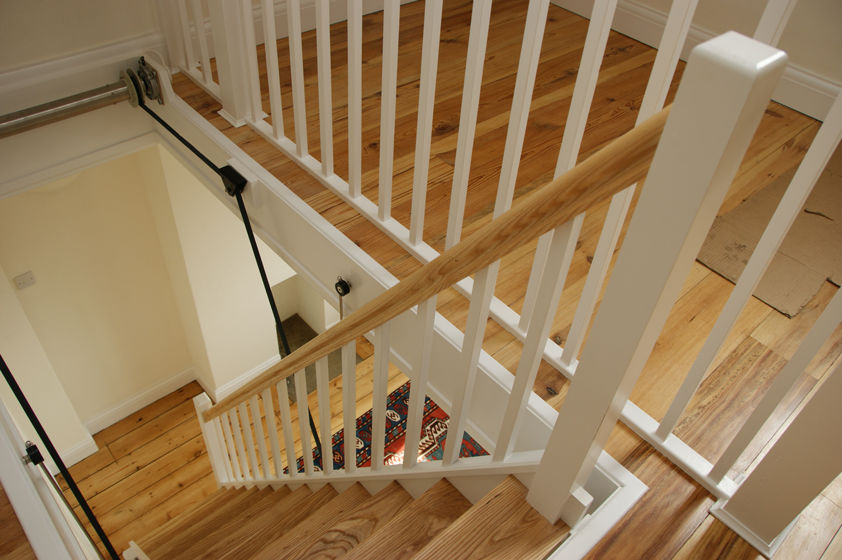

Midhurst

(Automatic Single Section Stairway)

For luxury loft access we offer our top of the range, push button operated single section stairway, custom built to your floor to floor specification. This has our largest tread section and is generally shallower in angle of climb. With full newel posts and balustrading, this stairway represents the ultimate in electric loft access.

All of our Electric Loft Ladders come with radio controlled or fixed wire switching. All our ladders also incorporate an emergency manual winding handle and battery backup is available.

This is a bespoke stairway, so please contact S & T Joinery at an early stage of your project for advice on the dimensional requirements of this product.

Structural Opening

Length max. 3000mm

Length min. 2000mm

Width max. 950mm

Width min. 820mm

Floor to floor

From 2200mm

to 3100mm

1 of 7

Price is excluding VAT but includes

fitting and delivery

Petworth

( Automatic Vertical Folding Stairway)

Automatic Vertical Folding Stairway From £15,000

The Petworth electric loft ladder represents an innovative solution to the problem of gabled loft access or high level doors where a conventional loft ladder cannot be used. This loft stairway can come complete with an automated door!

This is a most impressive ladder and is totally unique in its design and construction opening from a vertical wall rather than the usual loft hatch, and has taken years of research to develop.

Doorways half way up walls present a unique set of problems with sensible and safe access that is not flimsy and is also easy to operate. This product is not easy to build and this is reflected in the cost. It does require a full size door and an achievable floor to floor height.

Given how difficult this is to achieve we are truly proud of this outstanding product.

All of our Electric Loft Ladders incorporate an emergency manual winding handle and battery backup is available.

Manufactured using hard wood, typically Beech and Ash.

This stairway is built to your individual requirements, so please contact us at an early stage of your project for advice on the dimensional requirements of this product.

Petworth specifications:

Angles: dependent on height & available space

Prices exclude VAT & Delivery (fitting not included)

Loft rooms • Offices • Roof Gardens • Games rooms • Clean Storage • Dressing Rooms • Play rooms • Hobby Rooms • Studios

From £15,000

1 of 3

Call us now on 01243 671555 to discuss your project

S&T Joinery Ltd

Stubcroft Farm Studios

Stubcroft Lane

East Wittering

Chichester

West Sussex

PO20 8PJ

Tel: 01243 671555

Fax: 01243 671999

Mob: 07918 649508

Mob: 07918 649509

Please Click on the link below to send us an email.

Be sure to include a subject and your contact details.

EMAIL US

Electric Loft Ladders

Electric Loft Ladders & Electric Stairways

Loft ladders are more than an afterthought. A loft provides a potential space, one that becomes wasted if it is not easily accessed. At S&T Joinery, we utilise our wealth of joinery experience to create elegant and unique ladders, manufactured to function with ease and precision. We pay attention to the finer details, and all electric loft ladders, from the Slindon to the Midhurst, are hand crafted.

Our ladders are made of Ash and Beech as standard, and use a reliable radio control to reveal a beautiful wooden stairway. All our units can also be manually overridden, so even in the event of a power failure they can still be operated.

Quality is integral to the design, production, and finish of every loft ladder, and we ensure this high standard is maintained by meticulously testing every product before it leaves our workshop.

S&T Joinery stands tall on luxury loft stairways.

All our ladders are bespoke, so please contact S & T Joinery at an early stage of your project for advice on the dimensional requirements of our products.

Our Products: (Scroll down for more information)

Prices exclude VAT & Delivery (fitting and balustrade not included)

Guide Price Based on: Floor to ceiling 2550mm, Floor to Floor 2820mm

65 degrees, 1500 x 750mm opening £4750

60 degrees, 1650 x 820mm opening £4900

55 degrees 1800 x 860mm opening £5100

Excluding VAT, fitting and delivery.

Price from £8000.00

Eartham

Double Sliding electric ladder

The Double Sliding Ladder (Eartham) was designed to fill a gap in our range

for short openings or problems with limited space behind and/or above the
